Fire Alarm System and Uses

-

FIRE ALARM SYSTEM:-

A fire alarm system has various gadgets cooperating to recognize and caution individuals through visual and sound apparatuses when smoke, fire, carbon monoxide or different crises are available.

Types of Fire Alarm Systems with Wiring Diagrams
The following are the different types of fire alarm systems with wiring and connection diagrams.
Basic Fire Alarm in Home
This is the basic fire alarm system used in household wiring. A smoke or heat detector can be installed on the existing or new home wiring. The main supply is 120V AC (in the US) and 230V AC (in the EU). The detectors can be directly connected to the DB (distribution board) or existing wiring like an outlet.

Intelligent Fire Alarm System
In an intelligent fire alarm system, each device has the ability to analyze the environment around it and communicate the central control panel to take further action(s) in case of a fault, fire or the device needs cleaning or scheduled maintenance of the detectors.

Intelligent Fire Alarm System

Wireless Fire Alarm System:-

In a wireless fire alarm system, all the detectors and related devices are interconnected remotely through radio communication to the fire control board. In the remote fire alarm system, a radio sign is transmitted from the identifier, (for example, heat indicator) or call point to the central fire alarm system to enact the alert circuit.

Wireless Fire Alarm System
Addressable Fire Alarm System:-

An addressable fire alarm system is comprised of a series of fire detectors and devices that are associated back to a focal control board. With addressable fire alarm, every detector has a location or area, empowering the specific locator that was activated to be immediately distinguished.

Addressable Fire Alarm System Diagram
Conventional Fire Alarm System:-

A conventional fire alarm system works well in smaller facilities.  The system and its parts are wired to a similar cable that interfaces with an alarm control panel. The conventional fire alarm will recognize a fire and reveal to you the zone or area where a fire is situated on the control panel, yet it won't disclose to you the specific area of the fire. The system comprises at least one zones each having either physically worked call focuses or programmed discovery devices or a blend of both.

Conventional Addressable Fire Alarm System

Sorts of wiring:-



1) Class A
2) Class B

Class A wiring has 4 wires. This wiring utilized in the loop (addressable panel). Power is supplied from the two directions one cut wire doesn't make the loss of capacity to a device on the circuit.

Class A and Class B Wiring
Class B wiring has 2 wires. This wiring utilized in the zone (conventional panel). Power is taken care of from one direction with an end of line (4.7k) device present at the far edge. One cut wire will bring about the loss of activity of devices past the cut wire.

LOOP

In a fire alarm system, a loop is a pair of wires. It conveys force and signals between the circuit sheets inside the control board and the off-board gadgets in the field. The loop: As an Initiating Device Circuit (IDC), it conveys signals from the info gadgets to the board.

LOOP

ZONE

A caution zone is plainly characterized inside the standard however, by and large, is a region of the structure harmonizing with the fire compartment limits.


What is a Fire Alarm System?


 Components (parts)

1) Detectors
2) MCP
3) Hooter
4) Abort
5) Release
6) Response Indicator
7) Module
8) Fault Isolator

Detectors or Sensor:-

Fire detectors sense at least one of the items or wonders coming about because of fire, for example, smoke, warmth, infrared and additionally bright light radiation, or gas. In abodes, smoke alarms are frequently remaining solitary gadgets.

a) Smoke detectors


Smoke detectors can be categorized as follow based on design and working principles.

Ionization Smoke Detectors:- Ionization Smoke detectors work based on lowering the current flow through the inside chamber due to ionization which leads to initiate the alarm.



Light Scattering Smoke Detectors:- Light scattering smoke detectors work based on the Tindal effect.



Light Obscuring Smoke Detectors:- Light obscuring smoke detectors work based on measuring the amount of light falling on the surface of a photocell.


Smoke Detector
b) Heat detectors

Heat Detector
c) Multi detectors

Multi Detector
d) Flame detectors

Flame Detector


NITTIAN Flame Detector

e) UV detectors

Ultra Violet Detectors

UV IR Flame Detector
f) Beam detectors

Beam Detector
g) Duct detectors

Duct Detector
Manual call point:-

MCP is the point in a structure where a switch utilized physically to initiate an alarm, this requires human intercession. Manual call focuses are utilized to start a caution signal and work by methods for a straightforward catch press or when the glass is broken uncovering a catch.
Manual Call Point
Addressable Manual Call Point


Hooter or sounder:-

A straightforward, yet amazing and successful approach to raise a caution is through a noisy alarm and splendid lights. So when your framework is outfitted, the Siren or Hooter gives a puncturing discernible caution and brilliant strobe light when any rupture insecurity is identified by the sensors.


Hooters or Siren
Manual Abort:-

The prematurely end press button is held in, the fire concealment framework won't discharge. The Abort Switch is utilized to immediately interfere with the discharge circuit signal when the control unit is in the alert condition.

Abort Release


Manual Release:-

Manual gas discharge switch is utilized to discharged the gas if there should arise an occurrence of fire.

Response Indicator:-

Response Indicator is associated with programmed fire finders so as to demonstrate rapidly the wellspring of an alert sign from indicators that are not effectively available or unmistakable. The reaction pointers contain a marker light unit with one resp. two LEDs.

Response Indicator
Fault Isolator:-

Generally, the isolator is an electrical switch used to disconnect the faulty section from the working section in an electrical circuit. In terms of fire alarm system, its utilization to bypass or isolate faulty detectors/modules from the loop or from the system. So all other Loop/System will work fine. On the off chance that you are not using isolator that time flawed detectors/modules will harm the main panel, in the short entire framework will stop working.
Fault Isolator
Module:-

The monitoring module is input which gives the sign and Control Module is yield module to produce the horn or sound chimes and so on. Monitor modules are utilized to get initiation contributions from different fire alarm if there should be an occurrence of crisis condition (inconvenience or fire) for example, Fire Fighting Systems, Fire Extinguisher Panels, LPG boards, and so on.

In short control modules take order from the panel to apply a certain sequence, whereas the monitor module will give feedback to panel it can be a trouble, or supervisory,  or an alarm.

a) Control module

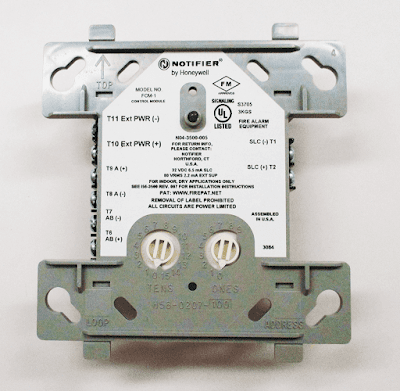

Control Module

b) Monitor module

Monitor Module

c) Relay module

Relay Module

d) Mini screen module

Mini Monitor


Battery:-

A fire alarm system can utilize the principle power supply as an essential source. In the event of intensity disappointment, the framework changes to the auxiliary force supply, comprising of an alarm battery. Every 12V and 7 AH.

Battery



Importance of FIRE ALARM SYSTEM

  • Fire alarms save lives: The number one reason to install a fire alarm is to make the building safe for your employees, customers, and tenants. A blend of smoke and warmth identifiers, alarms and bells, and strobe lights identify flames and ready building occupants, giving them plentiful time to clear in an organized manner.
  • Fire alarms reduce property loss: While strobe lights and alarms don't effectively extinguish fires, they alert the individuals who can. The fire control process starts when prepared faculty assault a little fire with a quencher and spectators, visitors, or workers call the local group of fire-fighters. Observed alarm frameworks naturally advise crisis responders and fire engines dispatch to your area immediately. The quicker these reactions occur, the sooner the fire is quenched and the less harm your structure continues.
  • Fire alarms shorten your recovery time: Less building damage means shorter downtime until you can reopen for business. This cuts your losses from the fire, even more, allowing you to return to business as usual before long.
  • Fire alarms may qualify you for insurance discounts: Most insurance carriers offer limited rates on business protection arrangement premiums on the off chance that you have a code-consistent alarm framework. Actually, a few suppliers expect you to introduce an alarm before they will safeguard your business.
  • Fire alarms keep you code-compliant: If you want to avoid fees and embarrassing PR problems, avoid getting caught up in code-compliance issues. One way to do this is to install a fire alarm in your commercial building.
